Prusa 3D Drucker Original Prusa XL / montiert / 2 Extruder
Top New
1 2 3 4 5 6

3D Drucker Original Prusa XL / montiert / 2 Extruder

Prusa XL 3D printer with Core XY system - assembled or semi-assembled and optionally with 1, 2 or 5 extruders.

PLA, PETG, ABS, ASA, Flex u.v.m. / 1,75mm / Headbed / max. Build volume (BxTxH): 360 x 360 x 360 mm

Any questions about this article? More articles in this category
€ 3,249.00 *
Content 1 piece
incl. 19% VAT and free shipping
€ 3,249.00 *
Content 1 piece
  • Printer design: Core XY
  • Build volume: 360 x 360 x 360 mm (14.17’’ x 14.17’’ x 14.17’’)
  • Printer dimensions: 800 x 800 x 900 mm (31.49’’  x 31.49’’ x  35.43’’) including side spoolholders and top enclosure cover (separate future add-on)
  • Filament diameter: 1.75mm, wide range of thermoplastics supported (including, but not limited to PLA, PETG, ASA, ABS…)
  • Extruder: Planetary 1:10 gearbox with no-slip drive gear, Load Cell sensor, E3D V6 compatible*
  • Tool Changer with up to 5 tool heads (optional upgrade via built-in expansion port)
  • Bed: Segmented heatbed with 16 individually controlled segments
  • Print surface: Removable magnetic steel sheets with different surface finishes
  • Electronics: 32-bit custom-made board with an expansion slot, single-cable communication with tool heads, network features, one-click printing
  • Mesh Bed Levelling: Load Cell-based fully automatic first layer calibration with no Live Z adjustment
  • Power panic: Hardware-based, single G-Code line accuracy
  • Ethernet connection: built-in; network connectivity not required for setup or operation
  • Wi-Fi module: built-in; network connectivity not required for setup or operation

*Nextruder V6 Düsen Adapter is not included

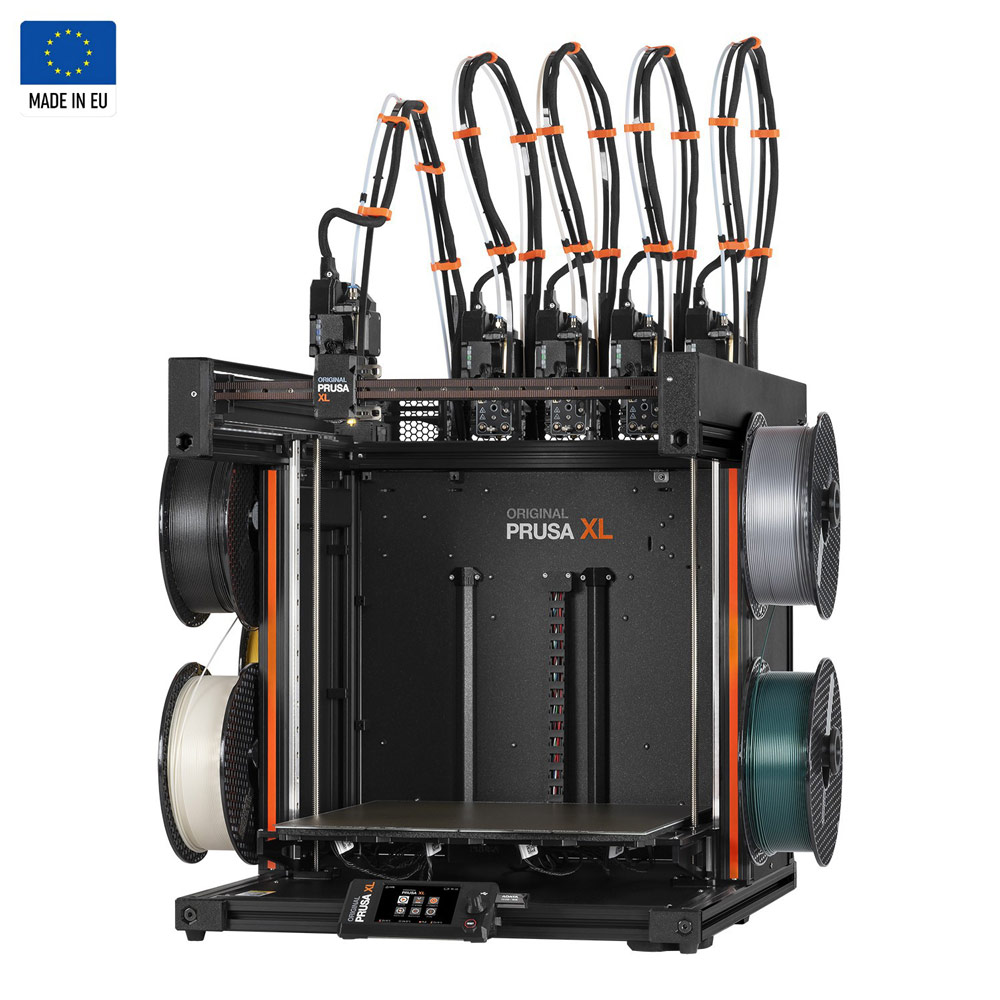

The Original Prusa XL is a unique large-scale CoreXY 3D printer with a build volume of 36×36×36 cm (14.17''×14.17''×14.17'') and an optional toolchanger to operate up to 5 independent toolheads. This allows you to print massive objects quickly and with little to no waste.

The XL offers a true multi-material experience, giving you the option to combine materials like soft TPU with durable PCCF in a single print. Or, for less demanding projects, you can use PLA as support material for PETG objects, making the removal of supports much easier. The XL can be upgraded with more toolheads at any time.

With five toolheads, the XL offers unmatched multi-material performance and speed with extremely fast tool changing and advanced technologies to deliver high-quality and colorful 3D prints with minimal-to-zero waste.

GO BIG WITH THE ORIGINAL PRUSA XL!

The Original Prusa XL runs on the latest embedded 32-bit platform with support for ultra-fast printing thanks to the native implementation of Input Shaper and Pressure Advance. Combined with the next-generation extruder, Nextruder, and its Loadcell sensor, the system can deliver an always-perfect first layer across the entire print surface - even in the five-head configuration! While the printer is compatible with our Prusa Connect network solution, it can be fully operated offline without any sacrifices in user comfort.

The toolchanger is what really sets the Original Prusa XL apart from other CoreXY 3D printers. The printer’s configuration allows for docking up to five toolheads and switching between them in a blink of an eye. You can preload up to five different filaments and truly take advantage of full multi-material printing. PLA combined with FLEX? PETG with PLA supports? The Original Prusa XL can deliver stunning results with ease - fast!

To further improve the quality and reliability of printing, the XL is equipped with a modular segmented heatbed driven by a separate electronic board. The heatbed consists of 16 individually controlled tiles designed to prevent heat deformation which is usually present in printers with a single large heatbed. You can always find the perfect print surface for your material with our proven double-sided print sheets with various types of surface textures.

With eight times larger print volume compared to the MINI+, no project is too big for the XL!

Efficient, Fast, Expandable

If you’re looking for a multi-material printer that won’t leave you with plenty of plastic waste on your hands, the Original Prusa XL has you covered. With five individual extruders, you can easily combine up to five filaments to print huge colorful objects - no matter whether you need a prototype for your client or just something cool to put on your shelf.

Switching between extruders is nearly instantaneous and there is very little waste because the XL doesn’t require a full wipe tower or a bin for plastic waste. All that is needed is a compact priming tower design to stabilize the pressure inside the nozzle. You can further reduce the amount of wasted filament by employing smart features from our PrusaSlicer, such as wipe to infill, which allows you to prime the nozzle into the object’s infill. With good dry filament, you can reduce the amount of plastic waste to an absolute minimum.

The machine is shipped with the latest available firmware featuring technologies such as Input Shaper, Pressure Advance and Precise Stepping. They all work together to further enhance the quality of the print and also to allow you to print much faster than ever before.

The Original Prusa XL can be further upgraded with additional extruders, so if you decide to start with a single-tool option, you can later expand it to two or five extruders with ready-made upgrade packages. An enclosure is coming soon as an optional upgrade.

Introducing the Nextruder!

Say goodbye to Live Adjust Z!

When designing the XL, we left no stone unturned. The Nextruder is the new generation of 3D printer extruders. With built-in electronics, featuring a dedicated CPU and a stepper driver directly in the print head, the Nextruder is controlled through a single-connector cable for easier maintenance. Fans, thermistors, the heater block and the extruder motor - this all connects directly to the board inside the print head.

The completely redesigned extruder assembly allowed us to implement a fully automatic first layer calibration for an always-perfect first layer. Thanks to the internally developed Load cell sensor embedded within the heatsink, the XL can measure the physical load in the heatsink and use the nozzle to probe the print surface. This way, the XL can utilize the load cell system to perform an incredibly precise height calculation for the first layer. No matter whether you just swapped the nozzle or the print sheet, there's no need to recalibrate anything. No Live Z, no manual adjustments. The XL delivers a perfectly smooth first layer every time you start a new print.

Filaments are no longer pushed by two small gears. Instead, we’re introducing a brand new planetary gearbox (1:10 ratio) with a large no-slip drive gear. This enables a higher level of control and also improves the compatibility with flexible materials. And there’s more: the nozzle and hotend are quick-swappable. The XL allows you to pull the entire hotend assembly out of the extruder without the need to disassemble it. We've also added another thermistor into the heatbreak, which allows us to adjust the temperature according to the material specs and also detect heat creep.

Special

Nextruder

Built from the ground up, the Nextruder is a brand new extruder for Original Prusa 3D printers. Significantly lighter and packed with the latest technologies, including a minimal-backlash gearbox and no-slip drive gear, the Nextruder is designed to deliver top-notch performance and amazing-looking 3D prints.

Low to Zero Waste Printing

The toolchanger and Nextruder were designed for efficient multi-material printing with minimal waste and super-fast operation, allowing you to combine multiple materials within a single print and to print easily with FLEX filaments. Many models can be printed completely without waste - no waste or priming towers necessary.

Toolchanger

The XL can be upgraded with up to 5 individual print heads, each driven by its own electronics board. The internally developed toolchanger uses a reliable wear-resistant system and easy tool alignment calibration ensuring millions of trouble-free tool swaps. This makes printing with multiple colors and materials quick and easy.

Power-loss recovery

Large prints can easily take many hours to finish. However, you don’t need to worry about power outages. The XL features hardware-based power-loss recovery. In case of a power failure, the XL stores the last known extruder location, so when the power is restored, the machine can pick up exactly where it left off - even with network prints!

Automatic First Layer Calibration

The Nextruder is equipped with the Load Cell function, which enables a fully automatic first layer calibration without ANY user intervention. No adjustments, no tuning. Before every print, the XL measures the distance between the nozzle and the sheet with pinpoint accuracy, so it delivers a perfect first layer every single time.

Wide range of supported materials

The XL is fully compatible with a wide range of various types of materials. No matter whether you want to print something for fun from PLA and flexible materials, or you need to produce durable prototypes from PETG, ASA, Polycarbonate and Polypropylene - the XL can handle them all with ease.

Advanced Network Features

While the XL can be fully operated offline without any compromises, it also features Wi-Fi and an ethernet port, allowing you to manage the printer remotely. With improved network speeds and G-Code streaming, you can start printing in seconds after uploading a print file into Prusa Connect cloud.

Slice with PrusaSlicer!

Our internally developed multiplatform slicer comes with in-house-made and fully tested profiles for all of our 3D printers and a wide range of filaments. With built-in tools, such as advanced support generation, cutting, automated object distribution, ironing and many others, you will turn your 3D models into print files in no time!

Model:

  • Technology
    FDM/FFM
  • Max. Build volume
    360 x 360 x 360 mm
  • Layer high
    n.a.
  • Printing temperature
    Printbed: max. 120 °C
    Extruder: max. 290 °C
  • Extruder
    1, 2 or 5 extruders, Direct Drive
  • Nozzle diameter
    0.4 mm
  • Filament diameter
    1,75 mm
  • Printing material
    PLA, PETG, ABS, ASA, Flex, HIPS, PA, PVA, PC, PP, CPE, PVB, NGEN and many more
  • Display
    3.5″ graphic 65k color screen
  • Connectivity
    USB drive / LAN / internet via Prusa Connect
  • Software
    PrusaSlicer
  • File types
    .stl
  • Printer dimensions
    800 x 800 x 900mm including side spoolholders and top enclosure cover (separate future add-on)
  • Weight
    k.A.
