Micro Swiss FlowTech™ - CHT High Flow Nozzles / 1.75 mm / 0,4mm

Microswiss and Bondtech have partnered to bring the High Flow nozzle to the FlowTech ecosystem.

This new nozzle incorporates proprietary CHT technology, specifically designed to enhance the filament flow rate.

Nozzle Features:

• Brass body
  • Plated with Non-stick Composite Additive TwinClad® XT Plating
• High Flow CHT
  • The FlowTech nozzle, equipped with Bondtech CHT technology, can achieve a maximum volumetric flow rate of up to 50 mm³/sec
• Better layer adhesion

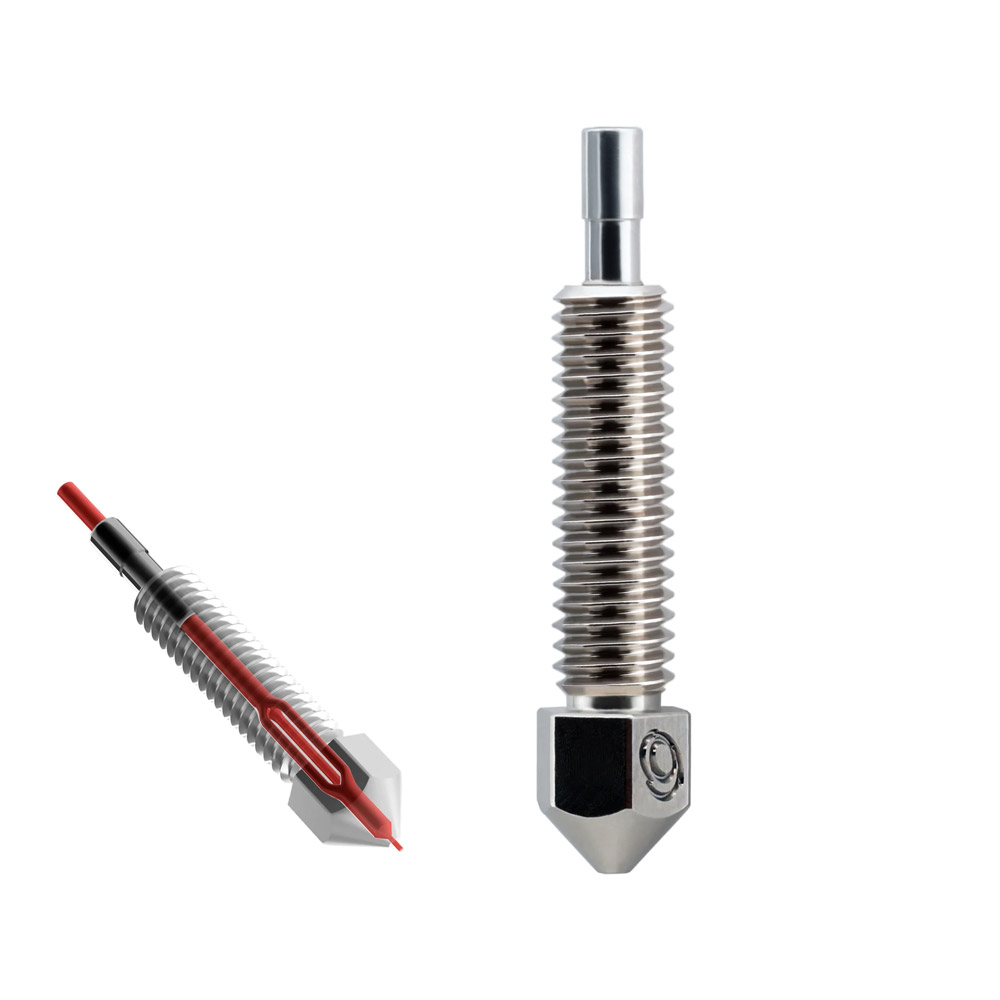

  • More uniform layer deposition is achieved by splitting the filament  flow into multiple chambers as it passes through the melt zone. This reduces gaps and weak points between layers
• Compatible with
  • The FlowTech CHT nozzle is compatible with all FlowTech hotend models

Orifice size available:

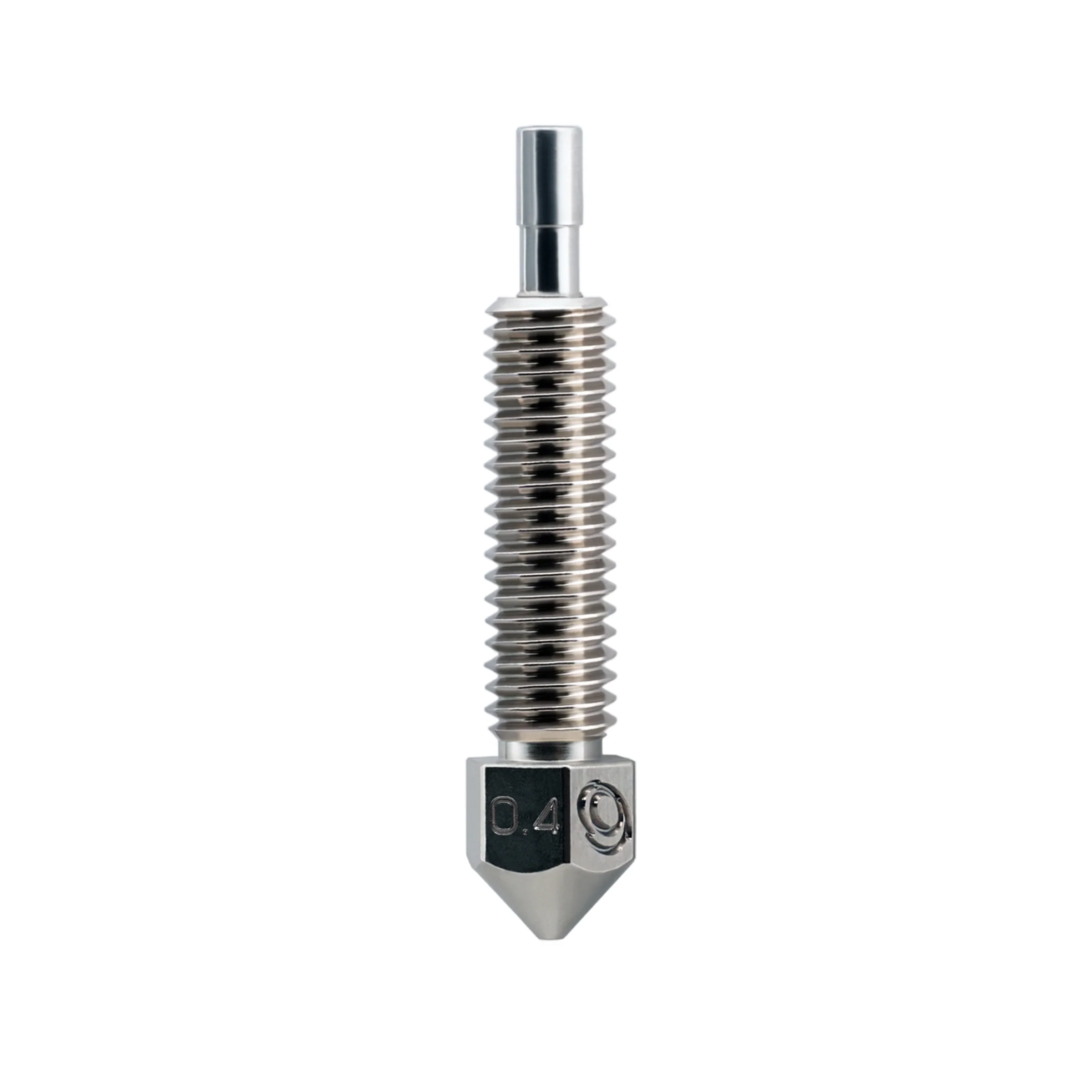

• 0.4mm,
• 0.6mm,
• 0.8mm,
• 1.0mm

Suitable for:

• FlowTech™ Hotend for Creality K1 / K1 Max / K1C (M3101)
• FlowTech™ Hotend for Creality CR-10 SE (M3102)
• FlowTech™ Hotend for Creality Ender 3 V3 KE (M3103)
• FlowTech™ Hotend for Creality Ender 3 V3 SE (M3105)
• FlowTech™ Hotend for Creality Ender 3 V3 (M3106)
• FlowTech™ Hotend for Hotend for Elegoo Neptune 4 / 4 Pro (M3107)
• FlowTech™ Hotend for Hotend for Elegoo Neptune 4 Plus/ 4 Max (M3108)

Made in Sweden by Bondtech
Assembled in USA by Microswiss
