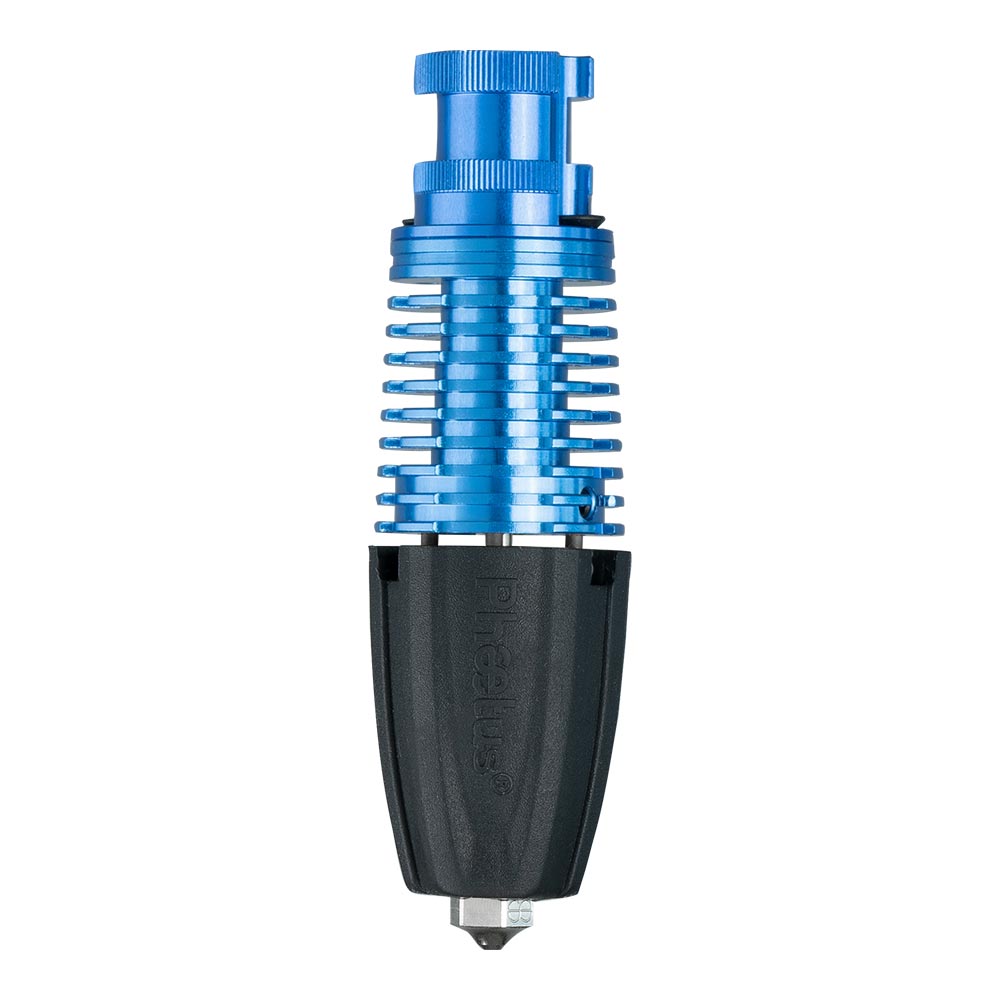

Phaetus Phaetus Rapido Hotend_280° UHF Blue
Phaetus Rapido Hotend_280° UHF Blue
incl. Volcano and V6 Nozzle
Ultra High Flow Hotend for high-temperature and high-abrasion filaments
- Manufacturer: Phaetus
- Manufacturer number: A158-04A-15-03-00
- EAN: 6973090162016
- Item number: 36342
- Availability: from stock > delivery time 1-3 working days
Any questions about this article?
More articles in this category
- Average Flow UHF > 30 mm3/sec
- Super Hight Flow printing Up to 75mm3 / sec
- High Heating Efficiency, taking only 51sec to 280°C
- 0.2 mm thin walled heat insulation
- One-Hand Nozzle Changing
- 280°C temperatur resistance all-metall kit
- HF / UHF Version interchangable
- The UHF version of the hotend comes with a Volcano nozzle and M6 nozzle incl. adapter.
Compatible with all thermoplastic filaments, including but not limited to typical composite fiber filaments such as PLA, ABS, PETG, TPU, PP, PA, and PLA-CF、ABS-CF、PETG-CF、PA-CF/GF, as well as composite filaments such as steel, wood, boron carbide, tungsten and fluorescence.
Ultra – high speed printing
- The printing volume can be up to 75mm3/s
- New design of the longer copper heatblock makes a larger molten area and meets the requirement of the high temperature and high speed printing.
Evenly heating unit
- Low heat conduction titanium alloy screws, realize the function of one – handed nozzle change, safe and reliable
- 0.25mm wall thickness
Thin wall thickness heatbreak
- Thin wall thickness heatbreak, eliminating the heat creep, realizing an excellent thermal insulation and no filament clog.
One – handed nozzle change
- Integral frame rigid structure of titanium alloy screws which has lower heat conductivity and realize the function of nozzle changement by one hand
The universal structure design
- The universal structure design realizes the fast switching of large flow and super large flow print heads.
Interchangeable design of different types of nozzles
- Interchangeable design of different types of nozzles to meet the requirements of high temperature and fiber filaments printing
Accessories List
- M2.5*8.0 Hexagon Socket Head Screw x 4 pcs
- M2.5*5 Custom Countersunk Hexagon Socket Screw x 2 pcs
- M2*1.8 Custom Semicircular Head with Gasket Screws x 1 pcs
- Black Heatblock Extension Cord x 1 pcs
- White Thermistor Extension Cord x 1 pcs
- Plated Copper Nut x 1 pcs (UHF Version Only)
- UHF Silicone Sock x 1 pcs (UHF Version Only)
- Phaetus Volcano Plated Copper Nozzle 0.6mm x 1 pcs (UHF Version Only)
- H10.0 Open - Ended Wrench x 1 pcs (UHF Version Only)
- 1.5 / 2.0 Hexagon Rod x 1 pcs
- Bowden Collect x 1 pcs
- Collect Clip x 1 pcs
